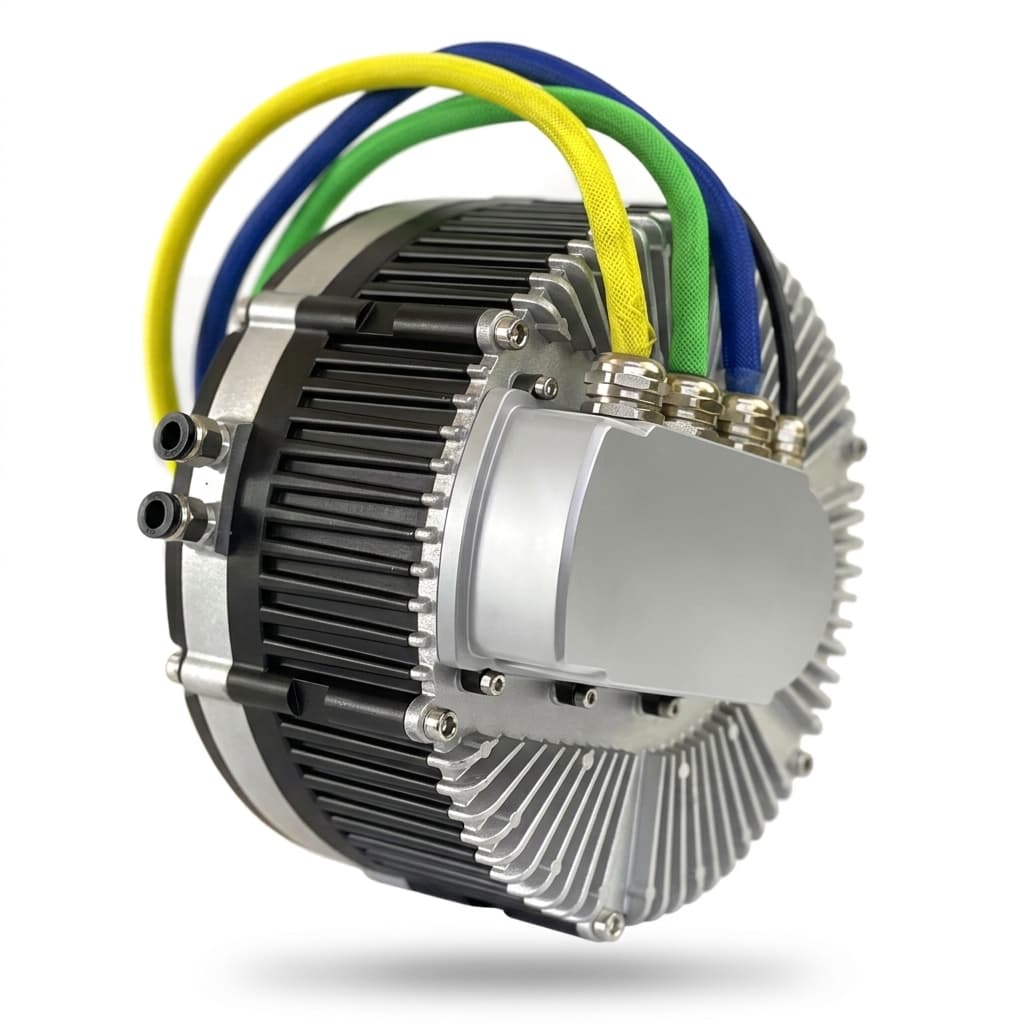

Halbach Array Magnets in Axial Flux Motor Design: When Does It Make Sense?

As axial flux motor designs push toward higher power density and lighter weight, engineers increasingly encounter the Halbach array — a specific arrangement of permanent magnets that concentrates magnetic flux on one side of the array while nearly canceling it on the other. Originally developed for particle accelerators, the Halbach concept has found compelling applications in high-performance AFPM motors.

But for OEM buyers and sourcing teams, the key question is not whether Halbach arrays are theoretically superior — it is whether the performance gains justify the significant manufacturing complexity and cost increase for your specific application.

1. How a Halbach Array Works

In a conventional AFPM rotor, all magnets are magnetized in the same direction (axially — pointing straight toward the stator). The rotor disk behind them (the "back-iron" or "yoke") provides a return path for the magnetic flux.

A Halbach array rotates the magnetization direction of adjacent magnets by 90°, creating a pattern where the magnetic field constructively reinforces on the stator side and destructively cancels on the back side.

2. Quantified Benefits

The primary advantages of a Halbach array in an AFPM motor are:

3. Manufacturing Complexity and Cost Reality

Here is where the engineering advantage meets the sourcing challenge:

Conventional rotor: 8-16 magnet segments per rotor, all magnetized identically, glued into pockets with uniform polarity. Assembly time: 15-30 minutes per rotor.

Halbach rotor: 32-64 individually oriented magnet segments per rotor. Each segment must be placed with ±0.2mm position tolerance and correct angular orientation. The intermediate magnets (those magnetized tangentially) experience strong repulsive forces during assembly, requiring specialized jigs and potentially sequential magnetization.

4. When Halbach Is Worth It

✅ Justified applications:

• eVTOL and drone propulsion where every gram counts and power density directly determines flight endurance
• Aerospace actuators with strict mass budgets
• Racing or high-performance EV motors where peak torque density justifies premium pricing
• Yokeless AFPM designs where eliminating the back-iron entirely (enabled by Halbach flux cancellation) creates the ultimate pancake motor

❌ Over-engineered for:

• Industrial AGV/AMR drives where cost per unit matters more than weight savings
• Generators where the mass penalty of conventional magnets is irrelevant on a stationary frame
• High-volume applications (>1,000 units/year) where the per-unit assembly cost becomes the dominant economic factor

5. Hybrid Halbach: The Practical Compromise

Many experienced AFPM motor OEM manufacturers now offer a simplified Halbach arrangement — using just 2 magnet orientations (axial + tangential) instead of the full continuous rotation pattern. This captures approximately 70-80% of the theoretical Halbach benefit while using only 1.5-2× the magnet count (vs. 3-4× for full Halbach).

This "engineering-grade Halbach" is increasingly the sweet spot for medium-volume OEM programs where buyers want meaningful performance improvement without the full cost penalty.

Sourcing Guidance

When evaluating a supplier's Halbach capability, request:

1. A flux density measurement comparison (Gaussmeter readings) between their conventional and Halbach rotor builds for the same frame size
2. Assembly process documentation showing fixturing and quality verification steps
3. Cost breakdown separating magnet material, magnetization, and assembly labor

Explore our Halbach motor product line or contact our engineering team to discuss whether Halbach arrays are the right fit for your power density requirements.
