← Back to Products

Axial Flux Permanent Magnet Motors

Custom AFPM motor programs for compact high-torque electric drives where axial length, torque density, and thermal path matter more than commodity radial-flux availability.

Target Buyer:Best for motor R&D, electric drivetrain, and sourcing teams that need a compact axial flux motor instead of a standard radial-flux motor catalog item.
Send Structured RFQPrepare RFQ Checklist
100kW Industrial Axial Flux Motor — view 1

Capability Highlights

  • Single-stator or dual-rotor AFPM architecture review
  • Segmented stator, concentrated winding, and rotor magnet assembly support
  • Compact package planning for light EV, robotics, drone, and marine drives
  • Prototype-to-pilot RFQ workflow with torque-speed and thermal acceptance gates

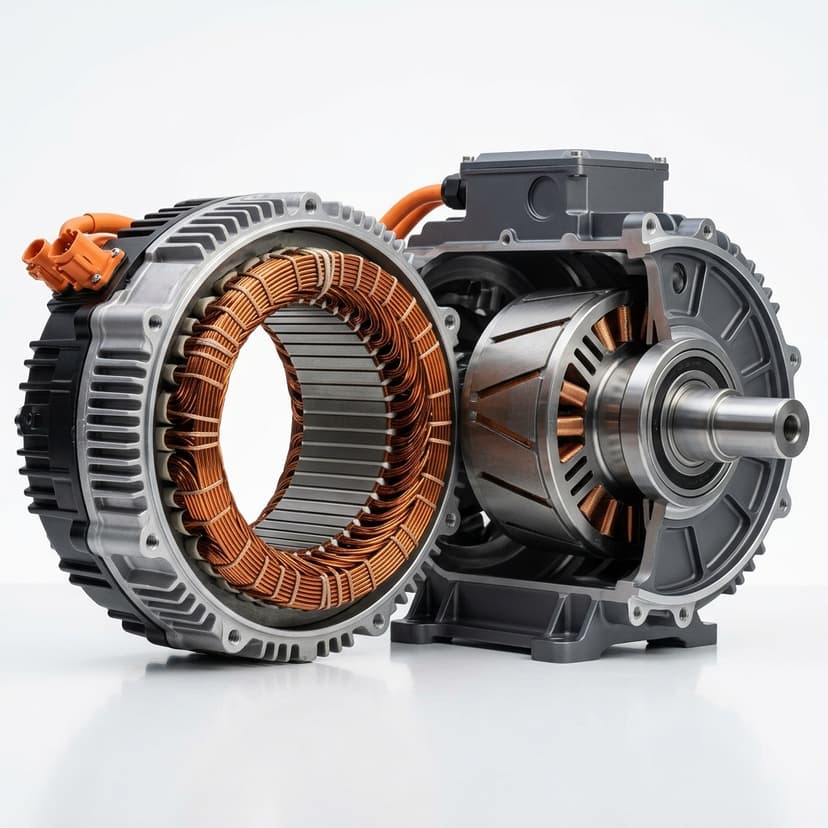

Typical Applications

  • Electric motorcycles and light EV traction modules
  • Compact robot joint and mobile robot drives
  • High-torque drone and eVTOL propulsion demonstrators
  • Low-speed marine and industrial direct-drive platforms

Engineering Focus

  • Torque-speed curve, DC bus voltage, current limit, and cooling assumptions
  • Airgap control, rotor stiffness, magnet retention, and axial load management
  • Stator winding fill, insulation class, slotless or yokeless topology decisions
  • Housing envelope, shaft interface, encoder placement, and inverter compatibility

Key Evaluation Matrix

MetricTypical RangeWhy It Matters
Torque density target1.5 - 3.5 N·m/kg (Continuous)AFPM value is strongest when torque per package depth is the main design constraint.
Axial package length35mm - 120mm active lengthThe axial length limit determines whether single-stator, dual-rotor, or custom housing work is viable.
Thermal pathClass H (180°C) or Class N (200°C) StatorContinuous torque depends on how quickly copper and rotor heat can leave the compact package.

Buyer Decision Inputs

  • Peak and continuous torque, target speed range, duty cycle, and overload window
  • Available axial length, outer diameter, shaft, flange, and mounting constraints
  • DC bus voltage, controller type, phase current limit, and feedback requirement

Factory Capability Signals

  • Torque-speed curve, DC bus voltage, current limit, and cooling assumptions
  • Airgap control, rotor stiffness, magnet retention, and axial load management
  • Stator winding fill, insulation class, slotless or yokeless topology decisions

Validation Evidence

  • Torque density target: AFPM value is strongest when torque per package depth is the main design constraint.
  • Axial package length: The axial length limit determines whether single-stator, dual-rotor, or custom housing work is viable.
  • Thermal path: Continuous torque depends on how quickly copper and rotor heat can leave the compact package.

Standard Technical Parameters

The following physical and electrical parameters define the baseline envelope for this product family. Final values are governed by the specific winding and cooling configuration chosen during the RFQ process.

ParameterPlanning RangeNotes
Torque (Continuous / Peak)Project-specific after duty-cycle and cooling reviewPeak limits depend on inverter phase current; continuous depends on thermal path.
Motor Constant (KV)Winding dependent target set during electrical reviewAdjusted via turn count to match target bus voltage and speed.
Electrical InterfaceDC bus voltage, phase current, pole pairs, resistance, and inductance set per windingNeeded to match inverter limits, back EMF margin, and controller tuning.
Physical DimensionsProject-specific OD, axial length, shaft, and flange envelopeScalable by stator segmentation and single vs. dual-rotor topology.
Feedback / Brake OptionsHall sensors, encoder, resolver, temperature sensors, or holding brake reviewSelected against control loop bandwidth, safety behavior, and integration space.
Cooling MethodsNatural Air, Forced Air, Liquid Jacket, OilSelection determines continuous power rating and environmental sealing.
Mass / Rotor InertiaProject-specific after rotor disk, magnet carrier, shaft, and housing freezeRequired for acceleration estimates, balancing scope, and mechanical safety review.
IP RatingProject-specific IP target after housing and seal reviewAir-cooled and liquid or oil-cooled packages require different sealing validation.

RFQ Checklist

  1. Peak and continuous torque, target speed range, duty cycle, and overload window
  2. Available axial length, outer diameter, shaft, flange, and mounting constraints
  3. DC bus voltage, controller type, phase current limit, and feedback requirement
  4. Cooling method: natural air, forced air, liquid jacket, or oil-assisted design
  5. Prototype quantity, validation plan, annual forecast, and delivery destination

Risk Controls

  • Airgap tolerance stack causes torque loss or rub risk: Review rotor stiffness, bearing support, machining tolerance, and assembly fixture before sample release.
  • Continuous torque is overestimated from peak torque: Freeze duty cycle, cooling method, winding temperature limit, and test points before quotation.

Production and QC Checkpoints

Use these checkpoints to turn a product-family discussion into a controlled sample and pilot-lot plan. The exact record set depends on the drawing, winding, rotor, cooling, and acceptance scope.

StageControl PointBuyer Evidence
RFQ freezePeak and continuous torque, target speed range, duty cycle, and overload window; Available axial length, outer diameter, shaft, flange, and mounting constraintsRevisioned RFQ, package envelope, torque-speed target, and CTQ list.
Manufacturing prepTorque-speed curve, DC bus voltage, current limit, and cooling assumptions; Airgap control, rotor stiffness, magnet retention, and axial load managementMaterial route, winding target, rotor or magnet retention method, and fixture plan.
Sample validationTorque density target, Axial package lengthResistance, hipot, no-load/back EMF, runout, balance, torque-speed, or thermal records as applicable.
Pilot handoffAirgap tolerance stack causes torque loss or rub risk; Continuous torque is overestimated from peak torqueLot traceability, change record, packaging approval, and outgoing inspection rhythm.

Engineering Asset Requests

Baseline parameter matrices, STEP files, and PDF datasheets may be shared after RFQ context is confirmed. Torque-speed maps and back EMF charts depend on the selected winding, cooling path, and validation scope.

Request 3D CAD (.STEP)Request Test Report / Data Sheet

Product Gallery

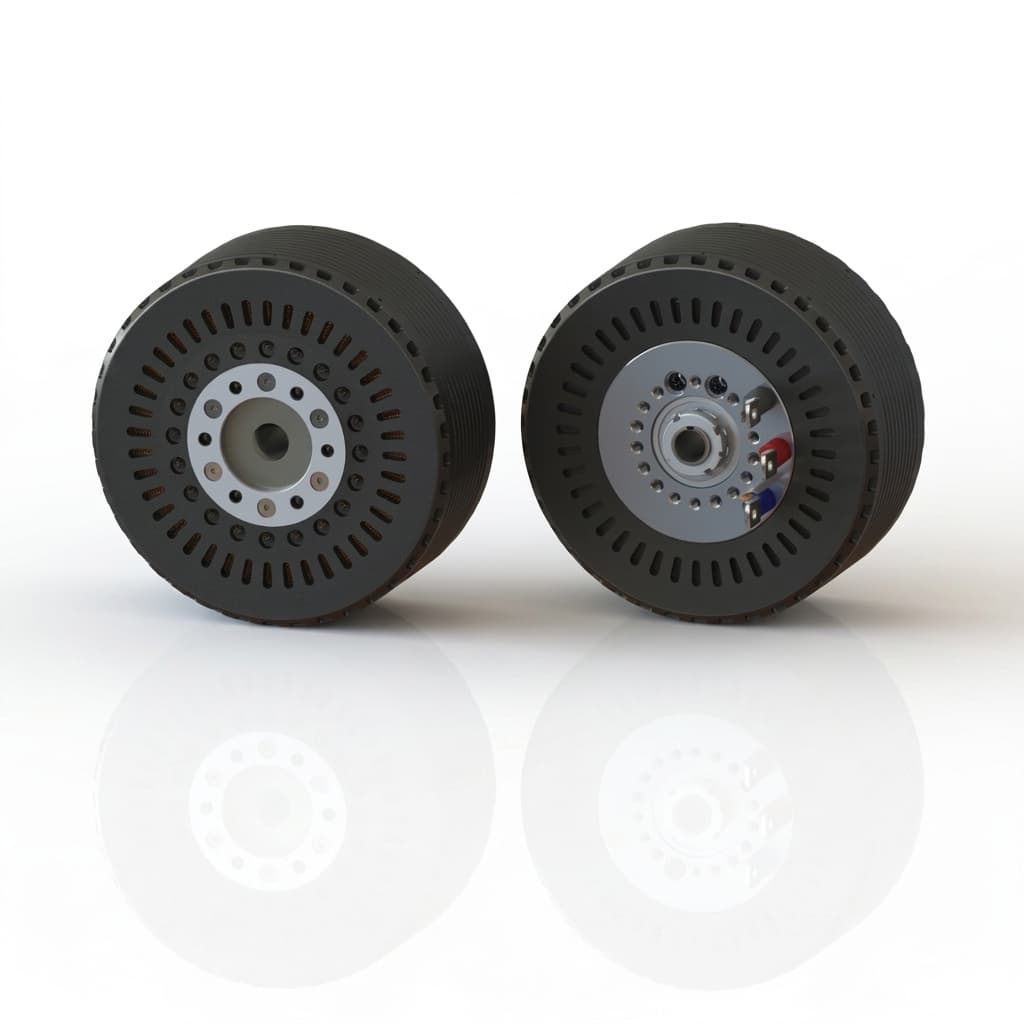

High-Efficiency Axial Flux Motor — view 1
High-Efficiency Axial Flux Motor — view 1
Liquid-Cooled Axial Flux Motor — view 1
Liquid-Cooled Axial Flux Motor — view 1
Double Stator Axial Flux Motor — view 1
Double Stator Axial Flux Motor — view 1

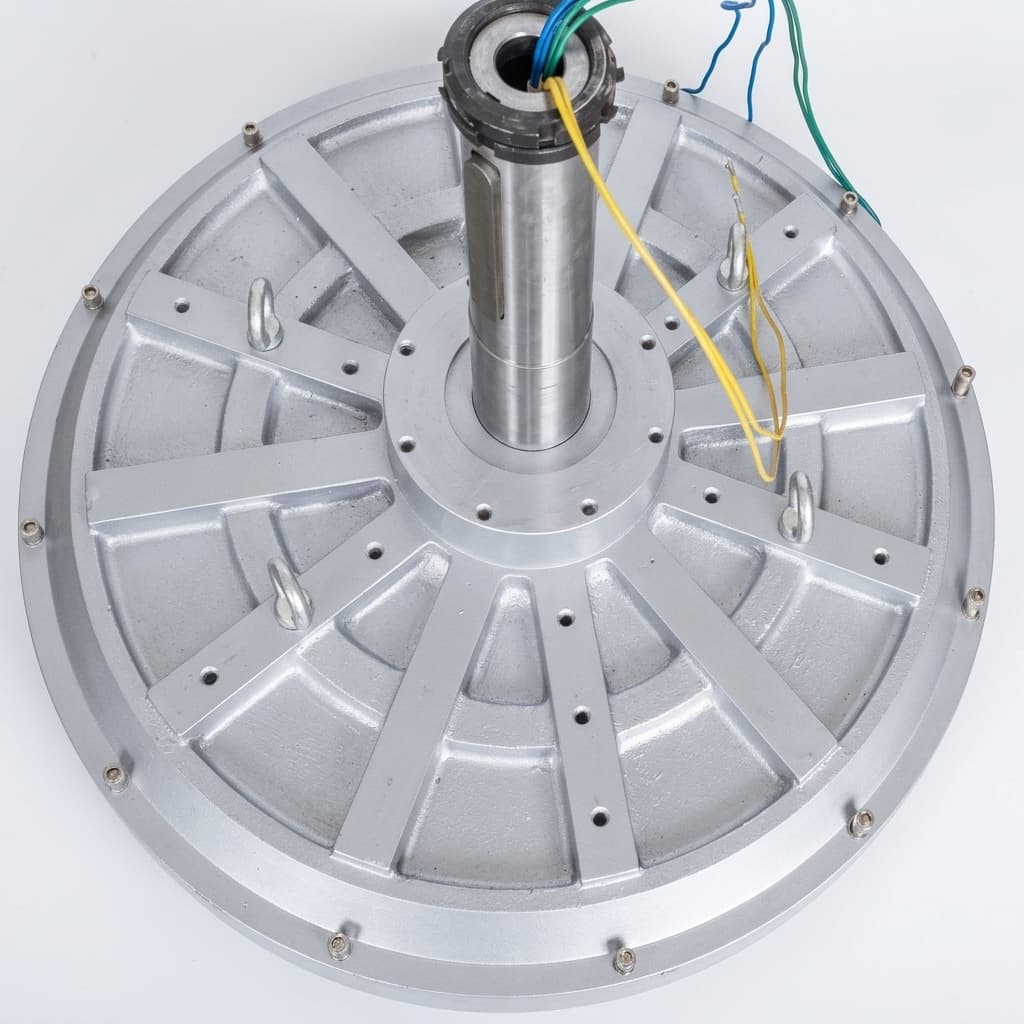

15kW 1000RPM Coreless Maglev Motor — view 1
15kW 1000RPM Coreless Maglev Motor — view 1
Multi-Stage Axial Flux Motor — view 1
Multi-Stage Axial Flux Motor — view 1

Buyer FAQ

Is AFPM always better than radial-flux PMSM?

No. AFPM is strongest when axial length and torque density dominate the design. Radial-flux motors may still be better for high-speed commodity platforms.

Can you quote from a target torque-speed map only?

Yes, but the first review still needs package envelope, voltage, cooling assumption, and controller limits to avoid a misleading estimate.
