Quality Gate Checklist for AFPM Motor OEM Programs: From Sample to Mass Production
2026/07/10

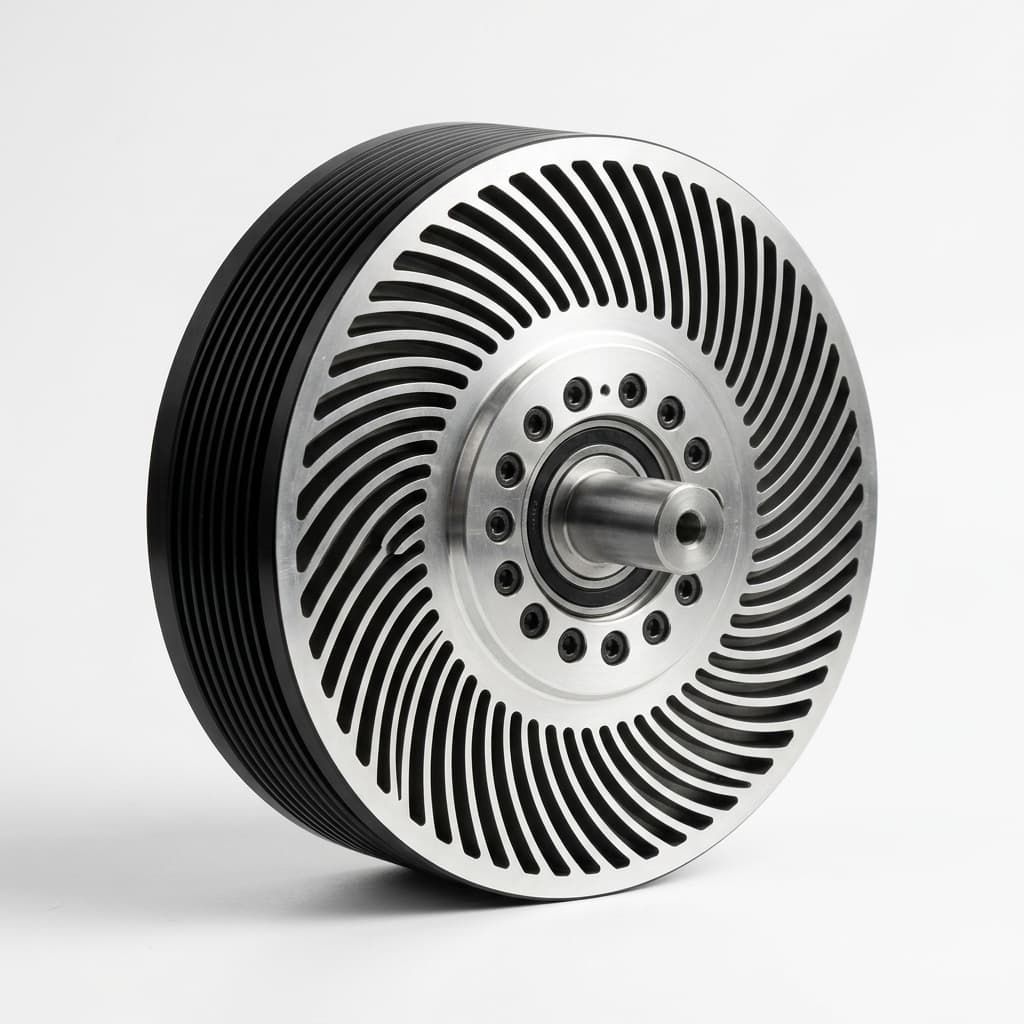

Quality Gate Checklist for AFPM Motor OEM Programs: From Sample to Mass Production

A comprehensive quality gate framework for OEM procurement teams managing axial flux motor programs — covering prototype acceptance, pilot validation, and mass production control plans.

Managing an OEM motor procurement program — especially for a technology as specialized as axial flux permanent magnet motors — requires structured quality gates that define precisely what is measured, what constitutes a pass, and who holds sign-off authority at each stage.

Without these gates, procurement teams face the "works on the bench but fails in the field" scenario that has stalled countless AFPM motor integration projects. This article provides a practical gate framework that OEM buyers can copy directly into their supplier management workflows.

Executive Summary for Procurement Managers:
Implement a 3-gate quality system: Gate 1 (Prototype Acceptance) validates electromagnetic performance against datasheet claims. Gate 2 (Pilot Lot Validation) confirms manufacturing consistency across 10-50 units. Gate 3 (Mass Production Release) establishes statistical process control on critical-to-quality (CTQ) dimensions and test parameters. Skipping Gate 2 is the most common mistake — and the most expensive.

Gate 1: Prototype Acceptance (2-5 Units)

The prototype gate answers one question: Does the motor perform as specified under controlled test conditions?

Required Test Matrix

TestMethodPass CriteriaPurpose
Phase ResistanceKelvin 4-wire at 25°CWithin ±5% of datasheetValidates winding correctness
Back-EMF Constant (Ke)Spin at rated RPM, measure line-to-line voltageWithin ±3% of targetConfirms magnet grade and airgap
No-Load CurrentRun at rated voltage, measure input currentUnder 5% of rated currentVerifies bearing friction and iron losses
Torque-Speed CurveDyno sweep at rated voltageMeets datasheet at 5+ operating pointsFull electromagnetic validation
Insulation Resistance500V Megger, 1 minuteOver 100 MΩWinding insulation integrity
Hipot / Dielectric2× rated voltage + 1000V, 1 minuteNo breakdown or flashoverSafety compliance
Thermal RiseS1 continuous duty at rated current, measure winding tempWinding temp within insulation class limitContinuous power validation
Vibration / BalanceISO 1940 G2.5 or betterWithin specified gradeDynamic balance confirmation
Gate 1 Red Flags
  • Back-EMF over 5% off target: Likely wrong magnet grade, incorrect airgap, or wrong winding turns count
  • No-load current over 8% of rated: Possible bearing defect, rotor eccentricity, or excessive iron losses
  • Thermal rise exceeds class: Cooling system inadequate for claimed continuous rating — request derating curve
  • Supplier refuses dyno testing: Major concern — no motor should ship without back-EMF and torque verification

Gate 2: Pilot Lot Validation (10-50 Units)

Gate 2 is the most frequently skipped gate — and the most dangerous to skip. Its purpose: Do 10-50 motors from the production line match the prototype that was hand-built by senior engineers?

What Changes Between Prototype and Production

  • Prototype stators are often wound by the factory's most experienced technician → production stators are wound by operators or machines
  • Prototype magnets may be cherry-picked from the best batch → production magnets come from normal stock
  • Prototype assembly gets extra attention to airgap, centering, and balance → production follows standard work instructions

Pilot Lot Testing Protocol

  1. 100% outgoing inspection of all electrical parameters (resistance, back-EMF, no-load, Hipot)
  2. Cpk analysis on critical dimensions: airgap (target Cpk ≥ 1.33), shaft runout, flange flatness
  3. 3 units selected for full dyno test to verify torque-speed curve matches prototype
  4. 1 unit subjected to accelerated life test (2,000 hours at 110% rated current, measure parameter drift)
  5. Cross-reference winding photos between prototype and production units to verify copper fill factor consistency

Minimum Pilot Lot Acceptance Criteria

ParameterCpk TargetTolerance
Phase resistance≥1.33±5% of nominal
Back-EMF constant≥1.67±3% of nominal
Airgap (per side)≥1.33±0.15mm
Shaft runout≥1.50Under 0.03mm TIR
Dynamic balance—ISO 1940 G2.5

Gate 3: Mass Production Release

Gate 3 establishes the ongoing quality system that will govern every shipment:

Control Plan Elements

  1. Incoming material inspection:

    • Magnet grade verification (BH curve spot-check per lot)
    • Silicon steel lamination thickness and core loss measurement
    • Bearing dimensional and noise check
  2. In-process checkpoints:

    • Winding resistance after each stator (100% check)
    • Magnet positioning verification (vision system or fixture gauge)
    • Airgap measurement post-assembly (100% check with feeler gauge or laser)
    • Dynamic balance on every rotor assembly
  3. Outgoing test (100% of units):

    • Phase resistance at 25°C
    • Back-EMF at specified RPM
    • No-load current at rated voltage
    • Insulation resistance (500V Megger)
    • Hipot (per safety standard)
    • Visual and dimensional inspection per drawing
  4. Statistical monitoring (weekly/monthly):

    • SPC charts on resistance, back-EMF, and airgap
    • Cpk recalculation quarterly
    • Nonconformance rate tracking with 8D root cause for any failure

Documents to Request from Your AFPM Motor Supplier

At each gate, your supplier should provide these deliverables:

GateRequired Documents
Gate 1Prototype test report (all parameters), dimensional report, winding cross-section photo
Gate 2Pilot lot Cpk report, 3-unit dyno comparison, accelerated life test initial results, production work instructions
Gate 3Control plan, outgoing test template, SPC baseline data, corrective action procedure, certificate of conformance template

Common Procurement Mistakes

  1. Accepting a supplier's datasheet without Gate 1 verification. A datasheet is a marketing document until validated by your own test equipment or a third-party lab.

  2. Skipping Gate 2 due to schedule pressure. The first production lot will always have higher variability than the hand-built prototype. Gate 2 catches this before your assembly line discovers it.

  3. Not specifying outgoing test content in the PO. If your purchase order does not list which parameters are tested and recorded for every unit, the supplier will test what is convenient — not what is critical.

  4. Ignoring winding photos. A 5-second cross-section photo under a microscope reveals fill factor, insulation integrity, and potting void content. This is the highest-ROI quality tool available.

Ready to structure your AFPM motor quality program? Review our quality and validation capabilities or contact our engineering team to align gate definitions with your program timeline.
